Connekt World Smart Board

1-Channel In-Line Wi-Fi Relay · RGB Status Indicator

Overview

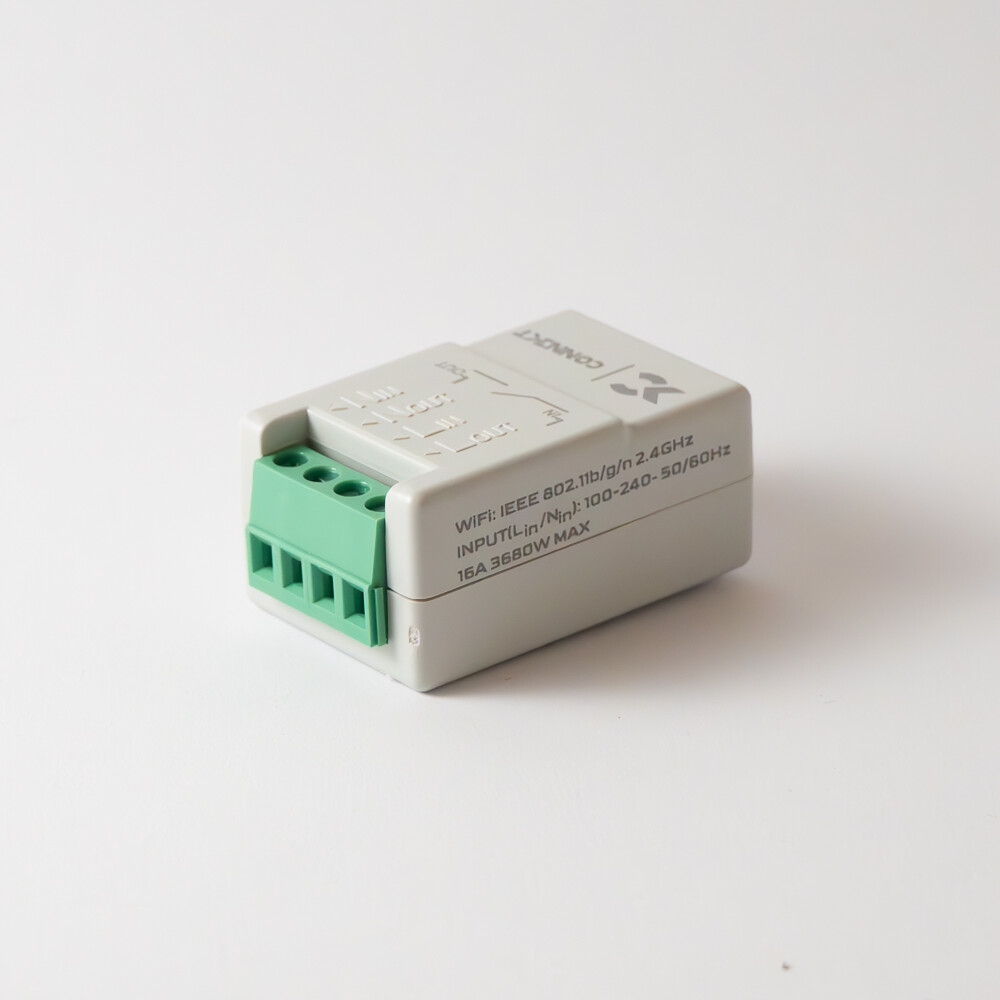

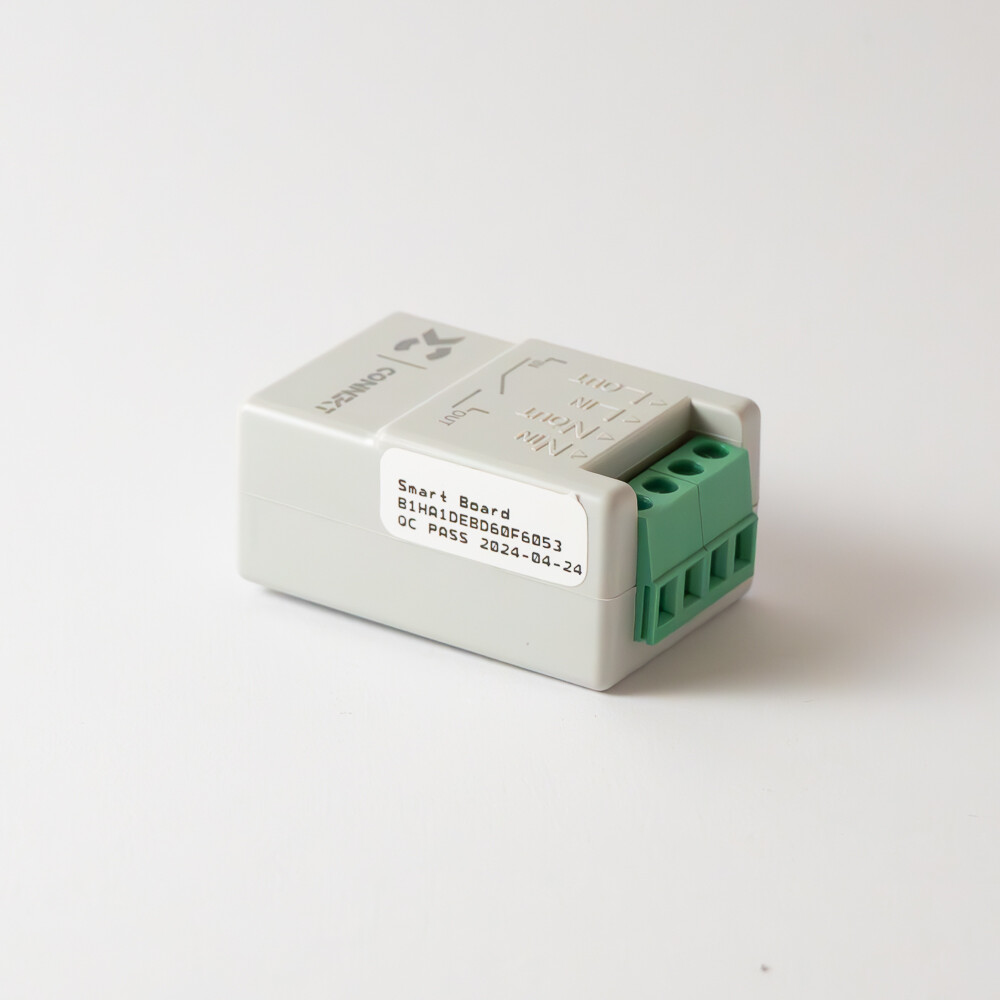

The Connekt World Smart Board (1ch) is a compact, in-line Wi-Fi relay designed to be installed directly between the mains power supply and an AC-powered device. It enables smart control of fixed electrical installations without requiring a visible switch or direct wiring to wall-mounted controls.

With dedicated line and neutral input and output terminals, the Smart Board can be used with a wide range of devices such as lamps, fans, heaters, stoves, and other permanently installed electrical loads.

As a native part of the Connekt ecosystem, the Smart Board integrates seamlessly with physical and virtual switches, virtual sensors, timers, and automation logic through Dynamical Device Control.

Typical Use Cases

• Control lighting without routing physical switch wiring to the lamp
• Modernize existing installations with hidden smart control
• Pair with virtual switches for fully software-defined control logic
• Act as a target device for scenes, timers, and automations

Dynamical Device Control Integration

The Smart Board acts as an execution target within Connekt’s Dynamical Device Control system. It can be controlled by:

• Virtual switches (single-press or double-press)
• Timers and schedules
• Quick actions

Once configured, it can continue operating locally over LAN on supported smart frames, even during internet outages.

Local Control & RGB Status Indicator

The Smart Board includes a semi-transparent, diffused front button with an integrated RGB LED. The LED provides clear visual feedback of the output state, while the button allows direct local interaction.

• Short press: toggles the output ON or OFF
• RGB indication: green for ON, red for OFF

Setup & Reset Functions

• Setup mode: press and hold the button for 3–5 seconds to enter Wi-Fi pairing mode
• Factory reset: press and hold the button for 10+ seconds to reset the device

Electrical Installation

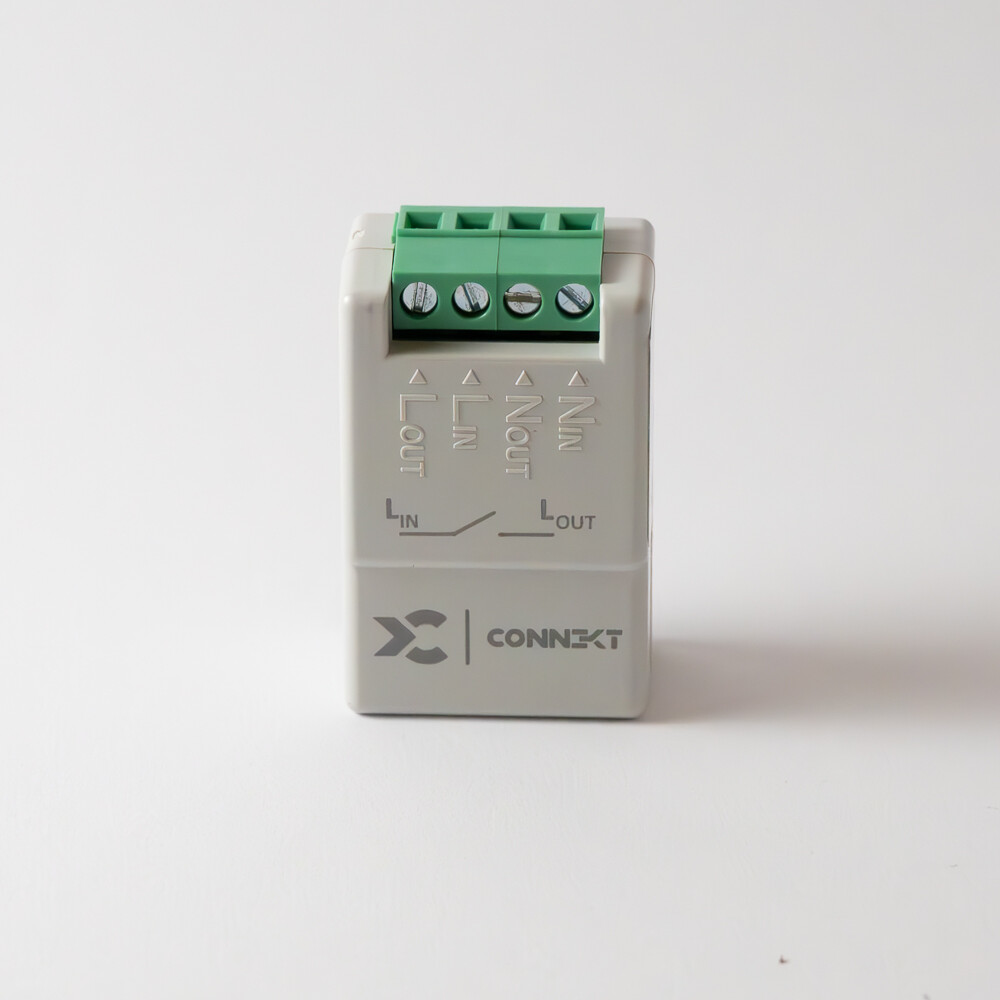

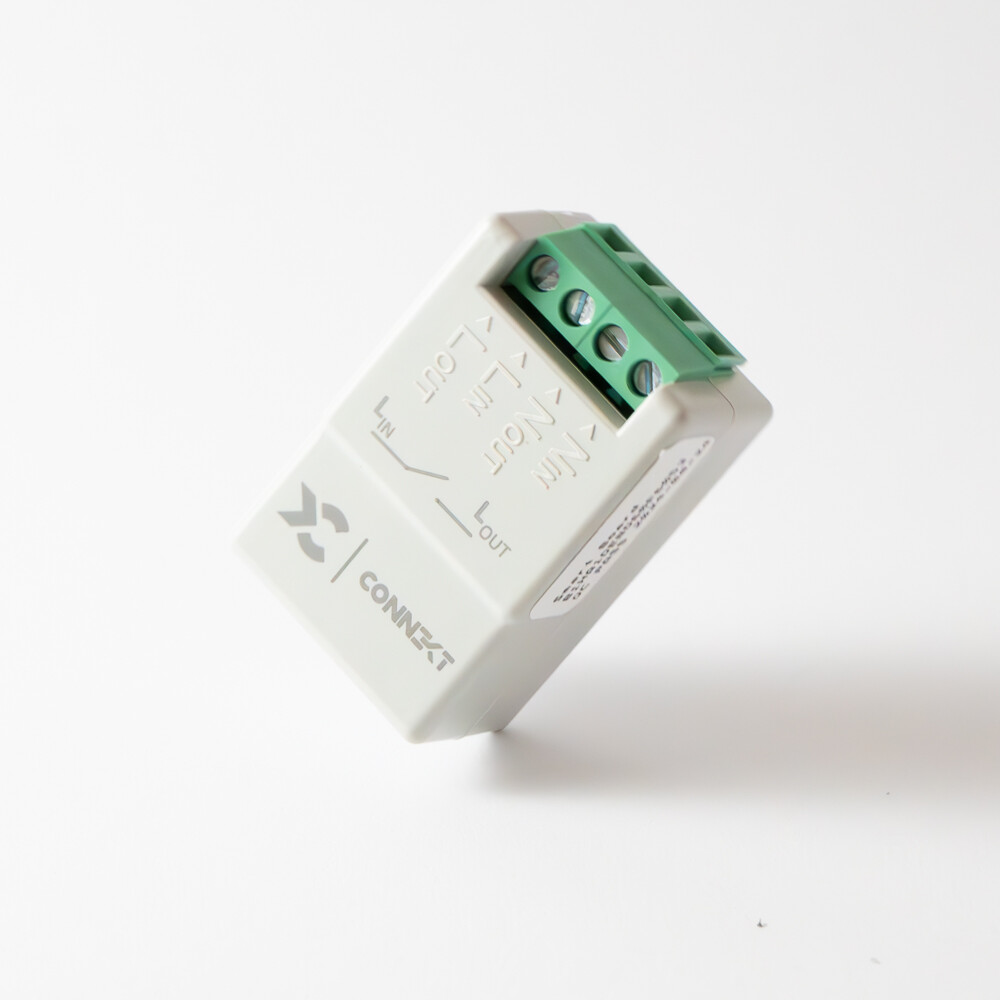

The Smart Board is installed in-line between the mains supply and the controlled device.

• Lin: Line input
• Lout: Line output to load
• Nin: Neutral input
• Nout: Neutral output to load
