Description
Smart. Modular. Effortless.
Overview

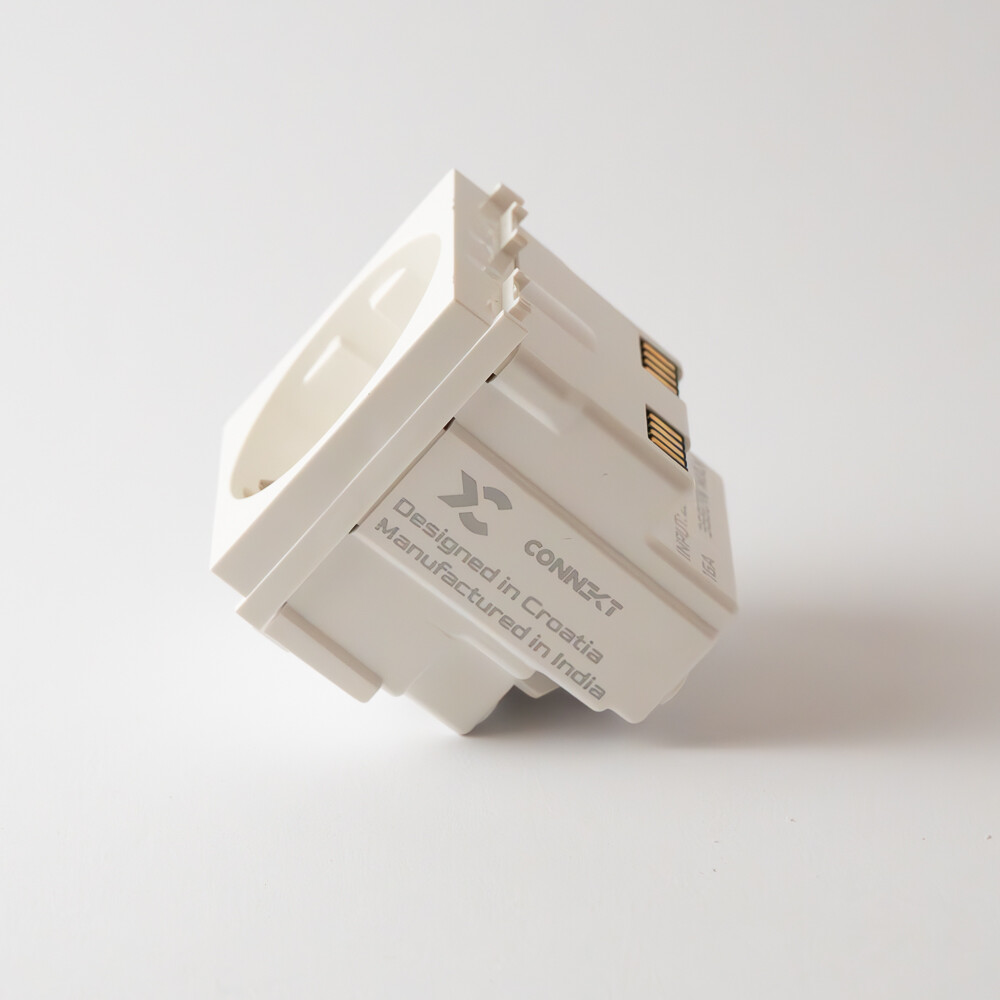

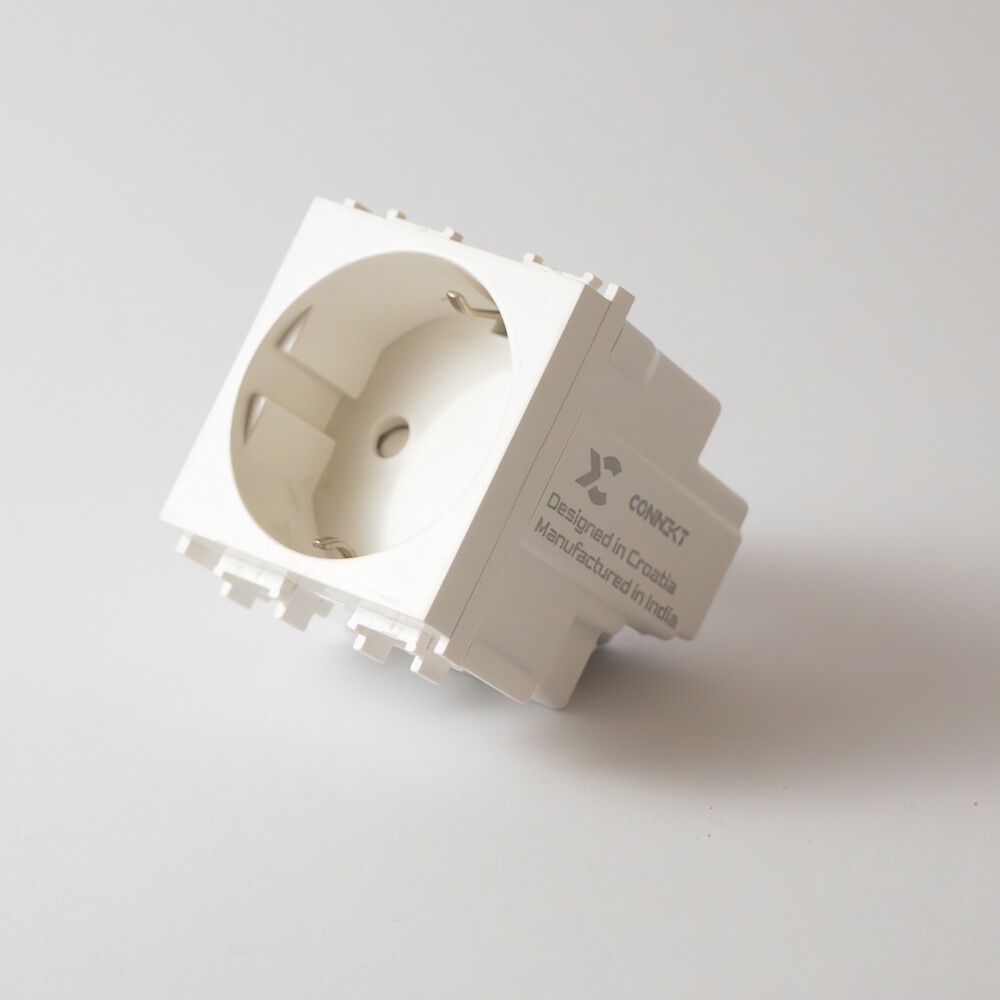

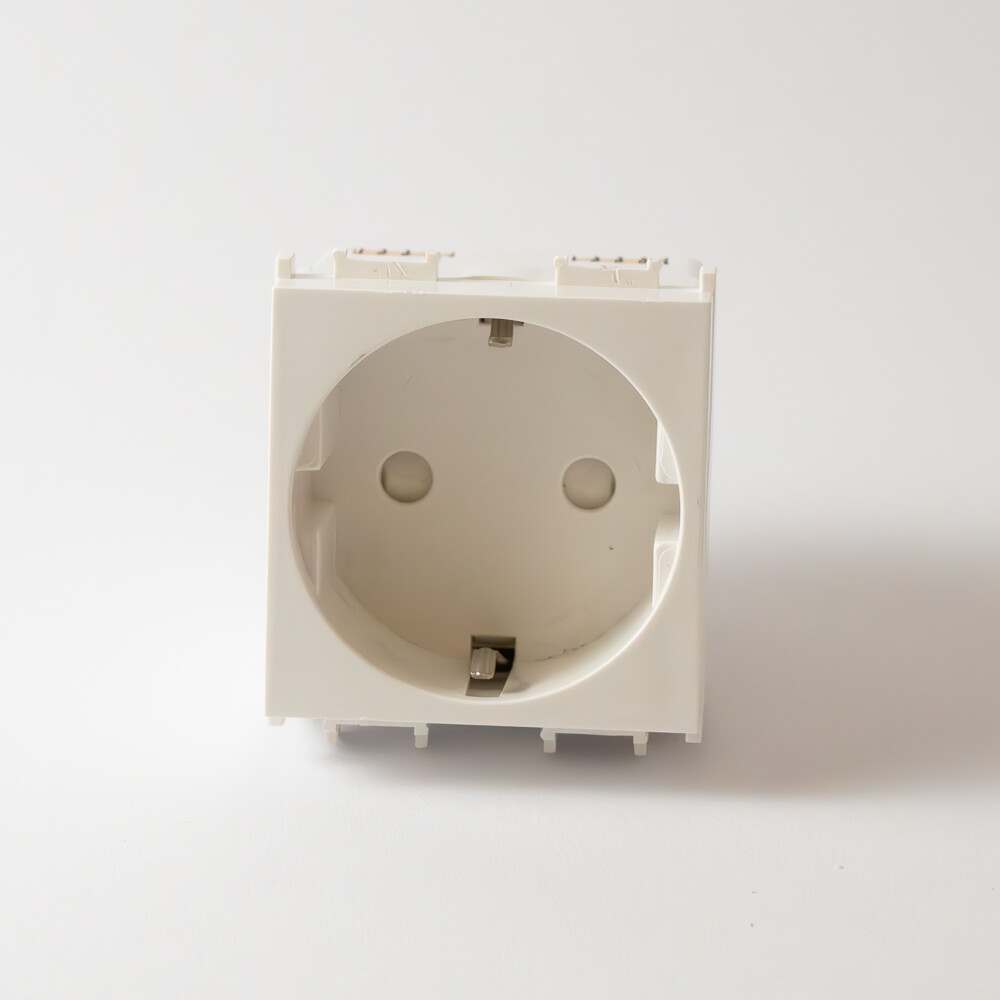

The Connekt World 2M Smart Socket allows you to control any connected device from your smart frame, the Connekt app, or compatible voice assistants like Google Home and Amazon Alexa. This module fits two positions in the frame and integrates seamlessly into your modular smart home system.
The socket can be switched on or off via the app, using the touch buttons on the corresponding cover, or by automation and voice commands. When paired with an optional RGB diffuser, visual feedback reflects the socket's state with smooth fade animations, complemented by an audible buzzer for confirmation.
Designed for reliability, the 2M Smart Socket receives low-voltage power from the smart frame for its electronics, while the AC output requires standard wiring. Installation is straightforward for qualified electricians and works in combination with any other smart or virtual modules.
Key Features
- 2M module: occupies two positions in the smart frame.
- Smart control: toggle output via app, touch buttons, or voice assistant.
- Touch button integration: left button changes state, right button checks state.
- Audio & visual feedback: buzzer and optional RGB diffuser animations confirm actions.
- Module-powered electronics: powered by frame; no extra power supply needed.
- Reliable AC switching: supports standard AC devices, wiring required.
- Seamless integration: works with other smart modules, virtual modules, and automations.
- Durable construction: PC (polycarbonate) with Traffic White or Graphite Black finish.

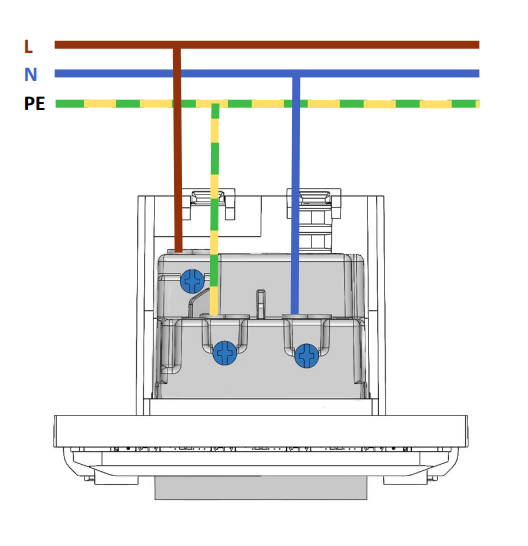

Installation Notes
- Requires a compatible Connekt smart frame.
- AC wiring required for socket output; module electronics powered via frame.
- Supports feedback via optional RGB diffuser.
- Touch buttons on the cover correspond to the module positions.
Short Description (SEO)
Connekt World 2M Smart Socket — modular smart AC socket with touch, app, and voice control. Audio and RGB feedback, frame-powered electronics, easy integration with Connekt Smart Modular System.
Technical Data
| General | |
|---|---|
| Module Size | 2M (occupies 2 frame positions) |
| Material | PC (Polycarbonate) |
| Colors | Traffic White, Graphite Black |
| Compatible Frames | Connekt Smart Frames |
| Features | |
| Output | AC relay switch |
| AC Wiring | Required for output |
| Module Power | Supplied by smart frame (low-voltage for electronics) |
| Touch Integration | Left button toggles state, right button checks state |
| Feedback | Audio buzzer + optional RGB diffuser |
| Smart Features | |
| Control | Connekt Smart Modular System app, touch cover, Google Home, Amazon Alexa |
| Automation | Supports quick actions, schedules, and triggers |
| Virtual Module Integration | Yes (works with virtual switches and automations) |
| Installation | |
| Mounting | Fits directly into smart frame |
| Wiring | AC wiring required for switched output |
| Certifications | CE, RoHS, RED, LVD, WEEE |

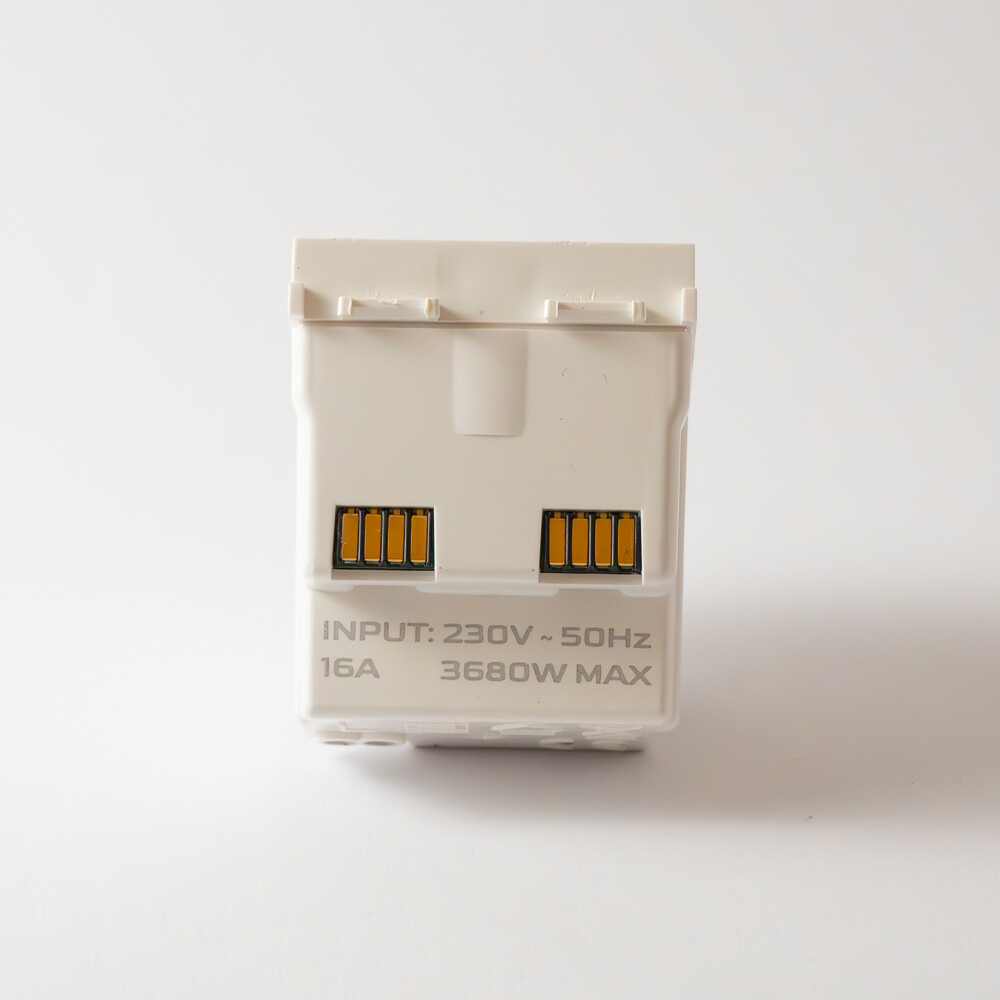

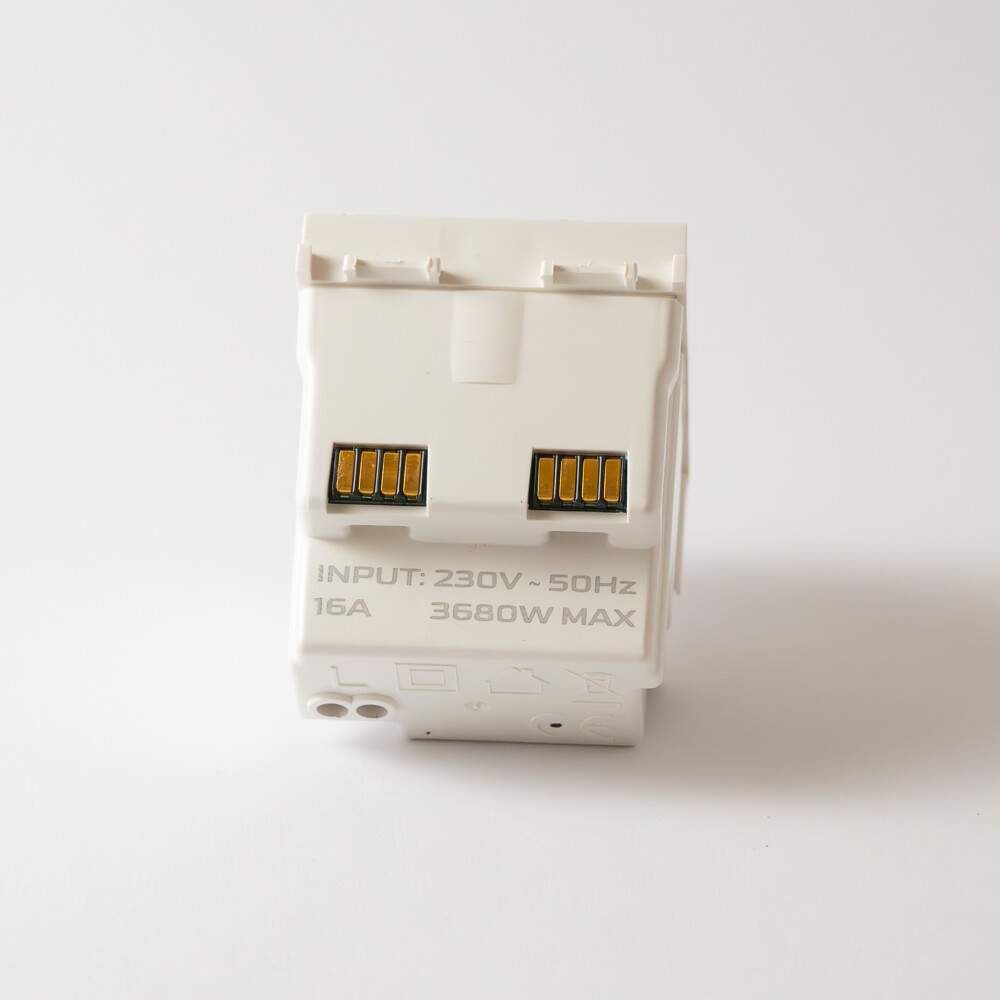

| Electrical | |
| Voltage | 230V AC (250V AC max) |
| Maximum current | 16A |
| Maximum power | 3680W |
