7M Wallbox
Maximum capacity for complex installations
MPN: W7H0X
GTIN: 3856031501132
Stock Status: Preorder
This item is available for preorder. Contact us for exact dispatch dates.
Description

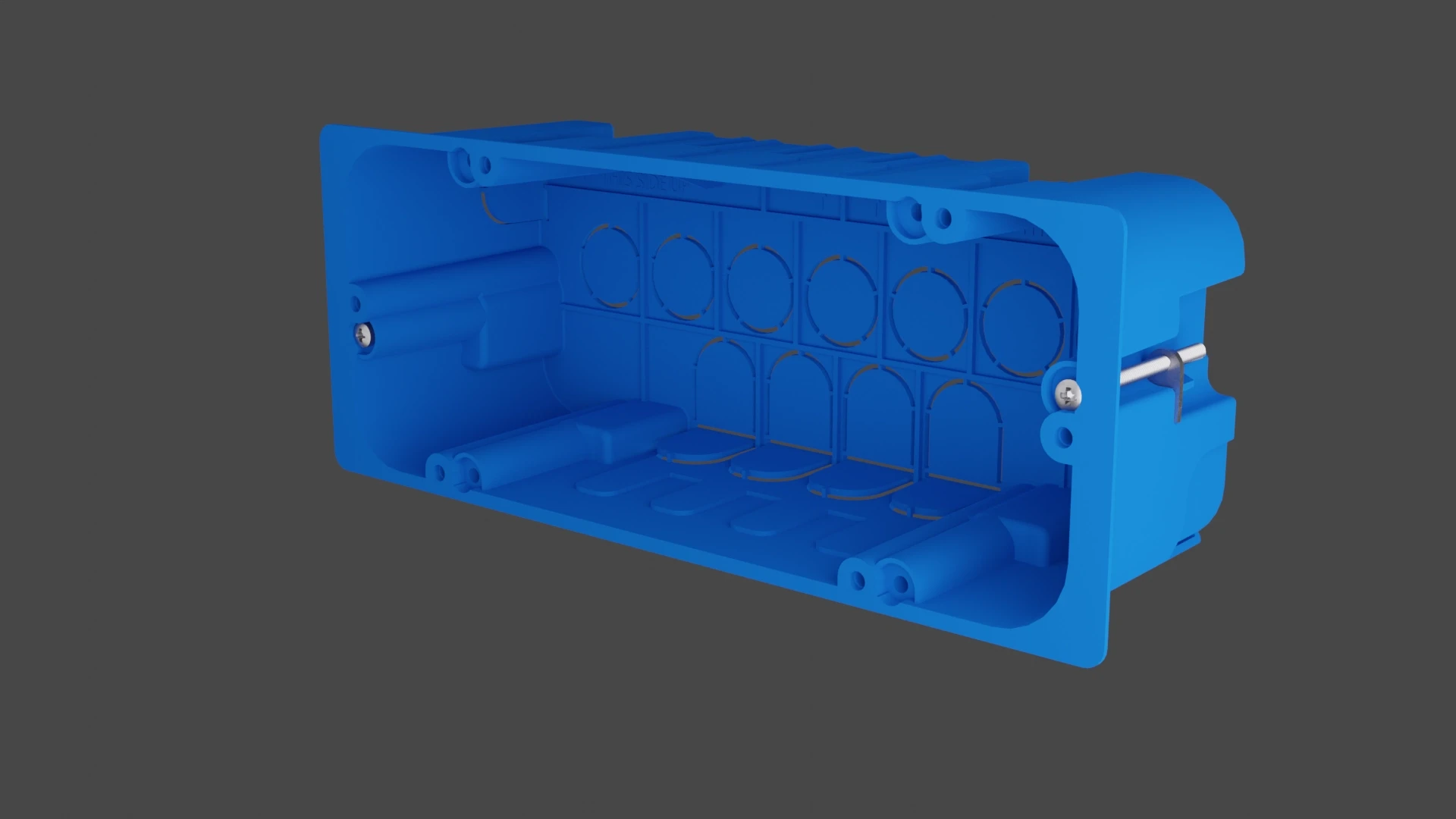

Connekt World 7M Wallbox
Flush-Mount Wallbox for Large Modular Installations
Overview
The Connekt World 7M Wallbox is a flush-mount installation box designed for large Connekt modular layouts. It provides the structural base and wiring space required for extended smart or regular installations.
The wallbox supports up to 7 × 1M modules and must be paired with a matching 7M Connekt frame and cover.
Wall Type Options
- Hollow Wall (Drywall): secured using rear clamping plates
- Brick Wall: fixed into masonry using plaster or mortar
- Concrete Wall: attached to formwork before concrete pouring; conduits must be installed in advance
Installation Notes
- Flush wall installation
- Extra space for complex wiring
- Compatible with smart and regular frames
Short Description (SEO)
Connekt World 7M Wallbox — flush-mount wallbox for large Connekt installations. Available for hollow wall, brick wall, and concrete applications.
Technical Data
| General | |
|---|---|
| Product Type | Wallbox |
| Size | 7M |
| Module Capacity | 7 × 1M modules |
| Compatibility | |
| Frames | Connekt Frame 7M |
| Covers | Connekt Cover 7M |
| System | Connekt modular system |
| Wall Types | |
| Hollow Wall | Drywall installation with rear clamping plates |
| Brick Wall | Masonry installation with plaster or mortar |
| Concrete Wall | Pre-mounted to formwork before pouring concrete |
| Installation | |
| Mounting | Flush wall installation |
| Conduits | Must be connected before final wall closure |
| Configuration | Not required |
| Certifications | |
| Compliance | CE |
| Standards | RoHS |
