Connekt World 1M Smart Physical Switch

SinglePress · Single-Pole · RGB Status Indicator

Overview

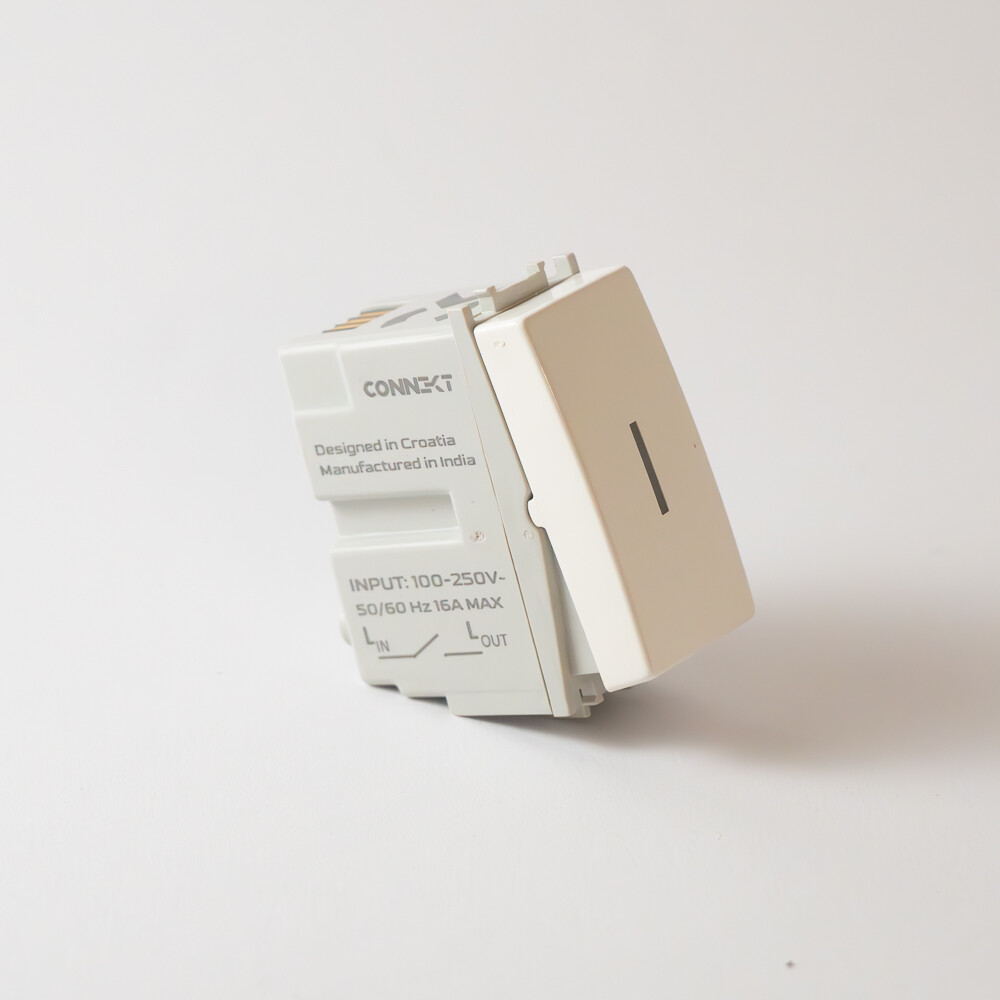

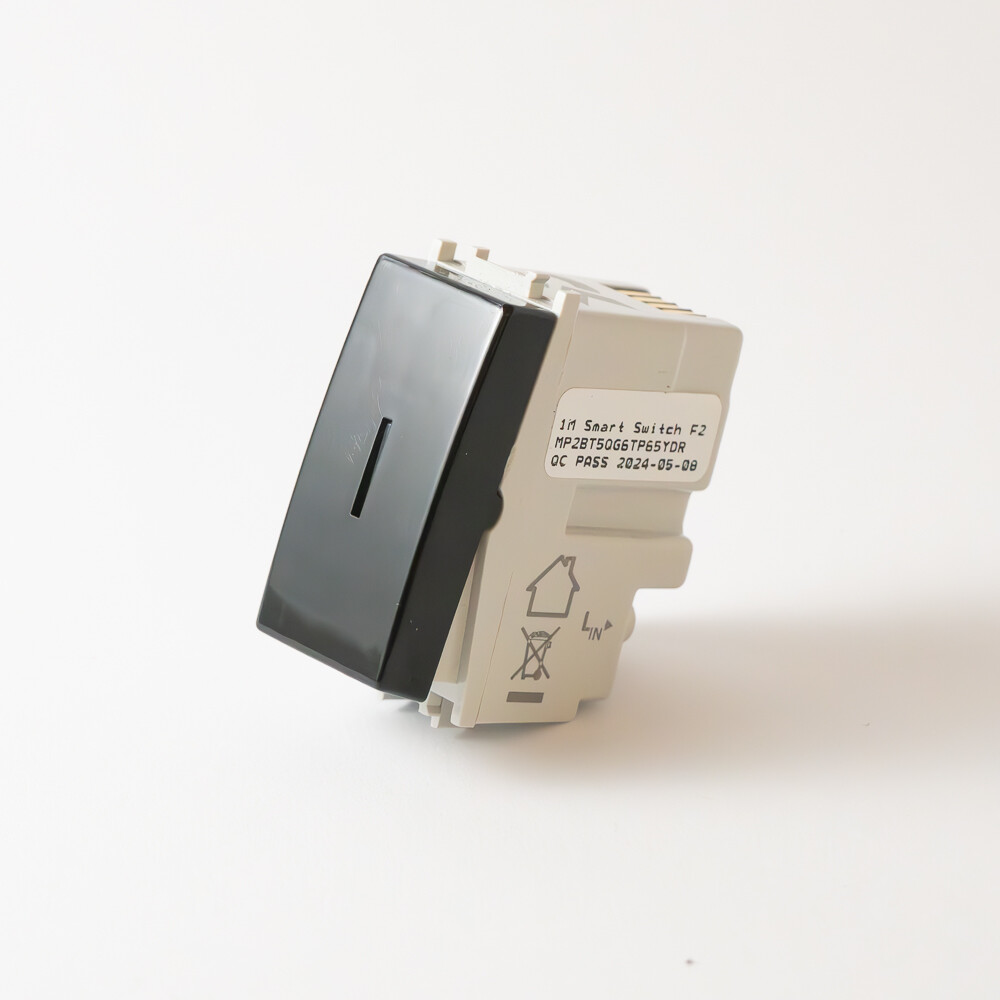

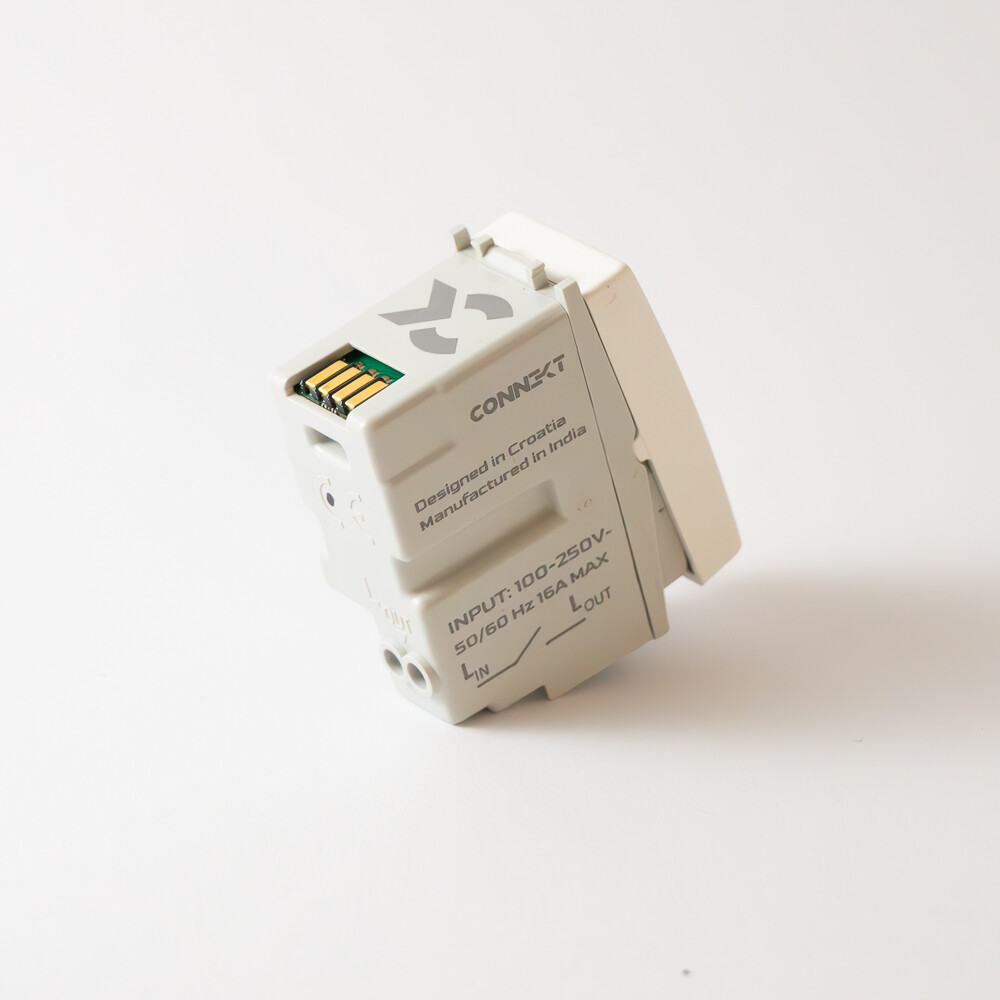

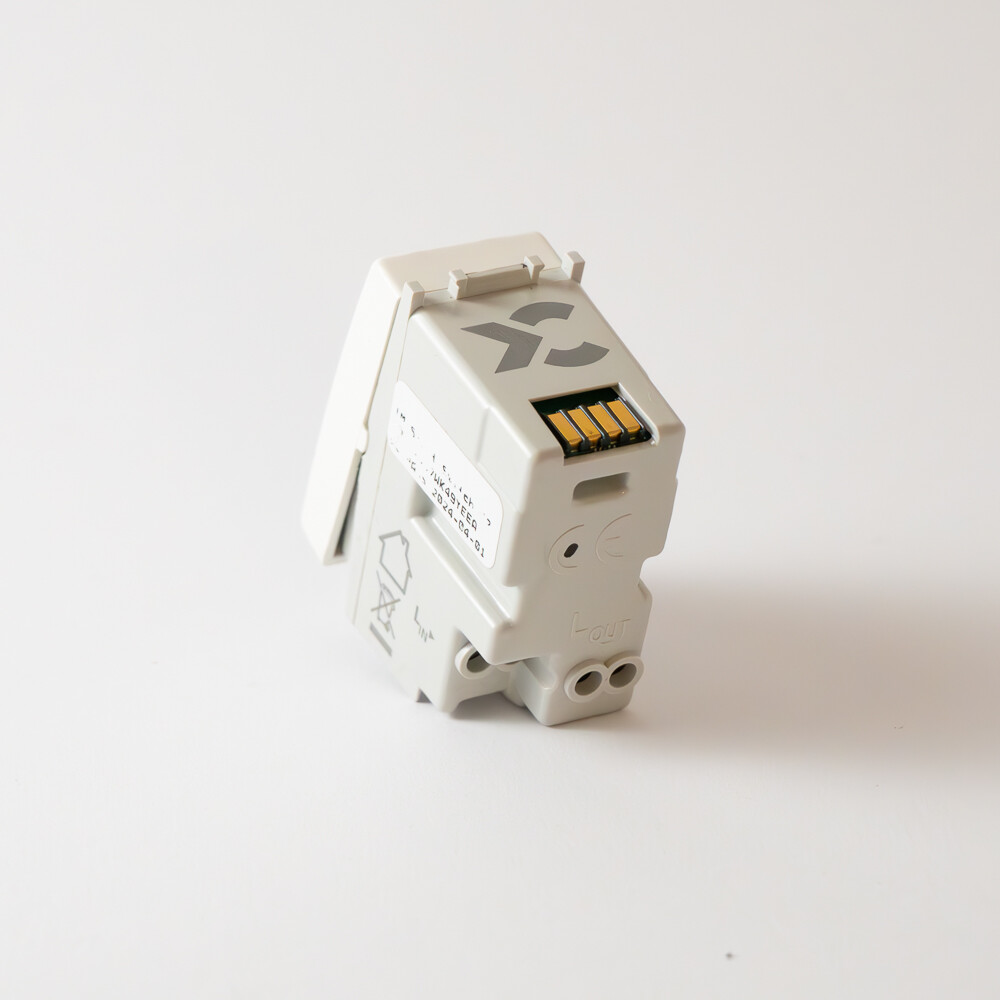

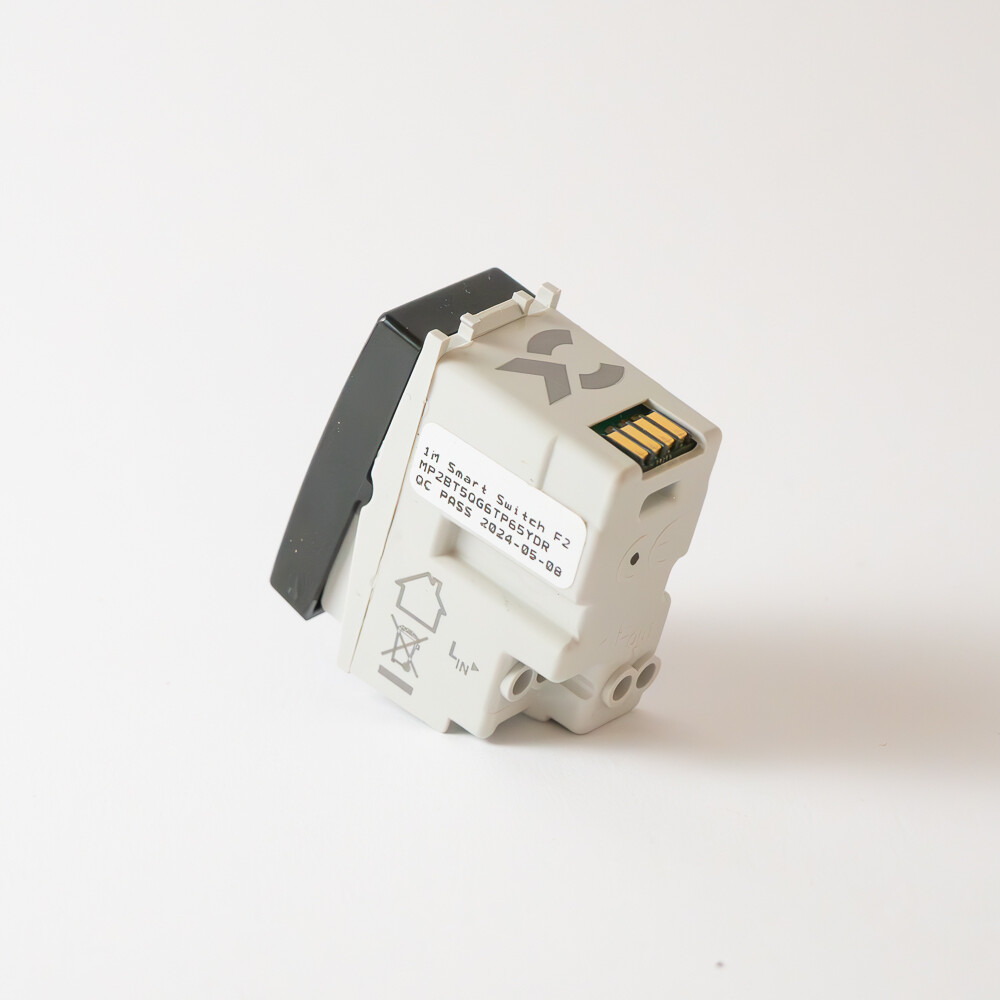

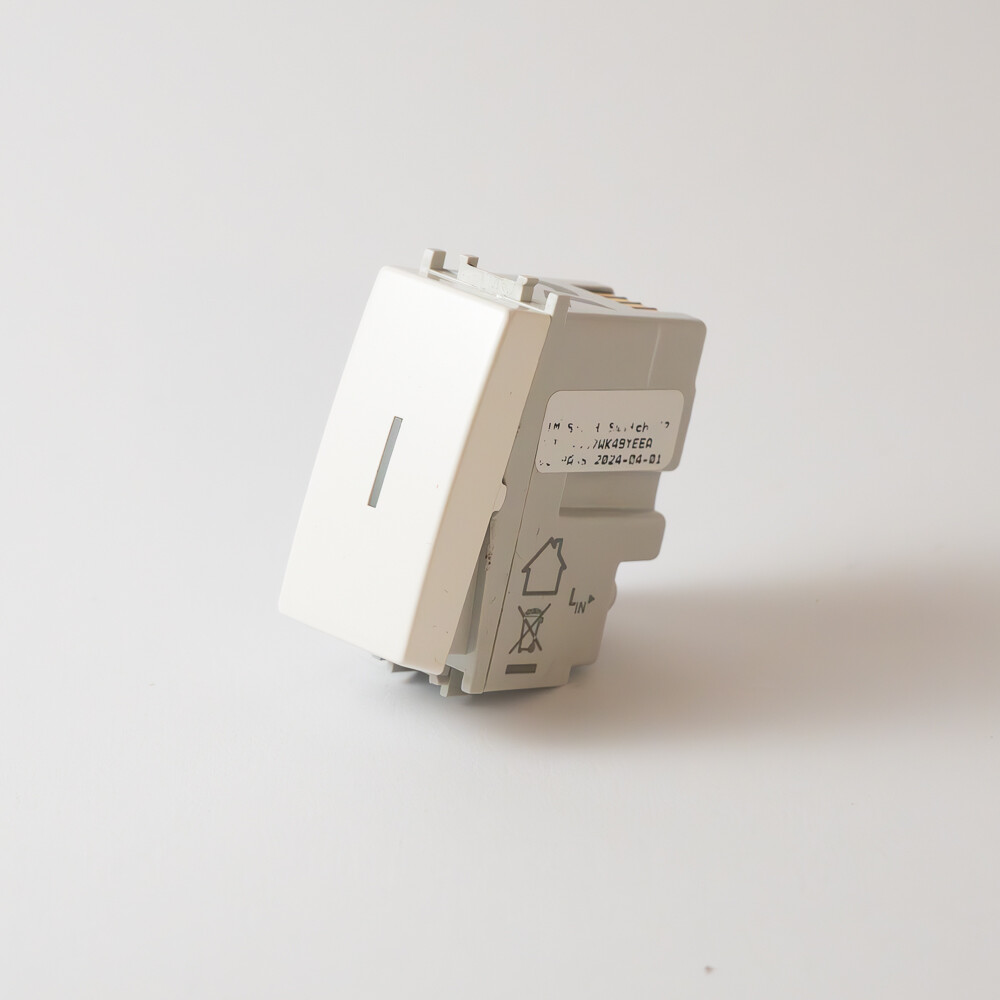

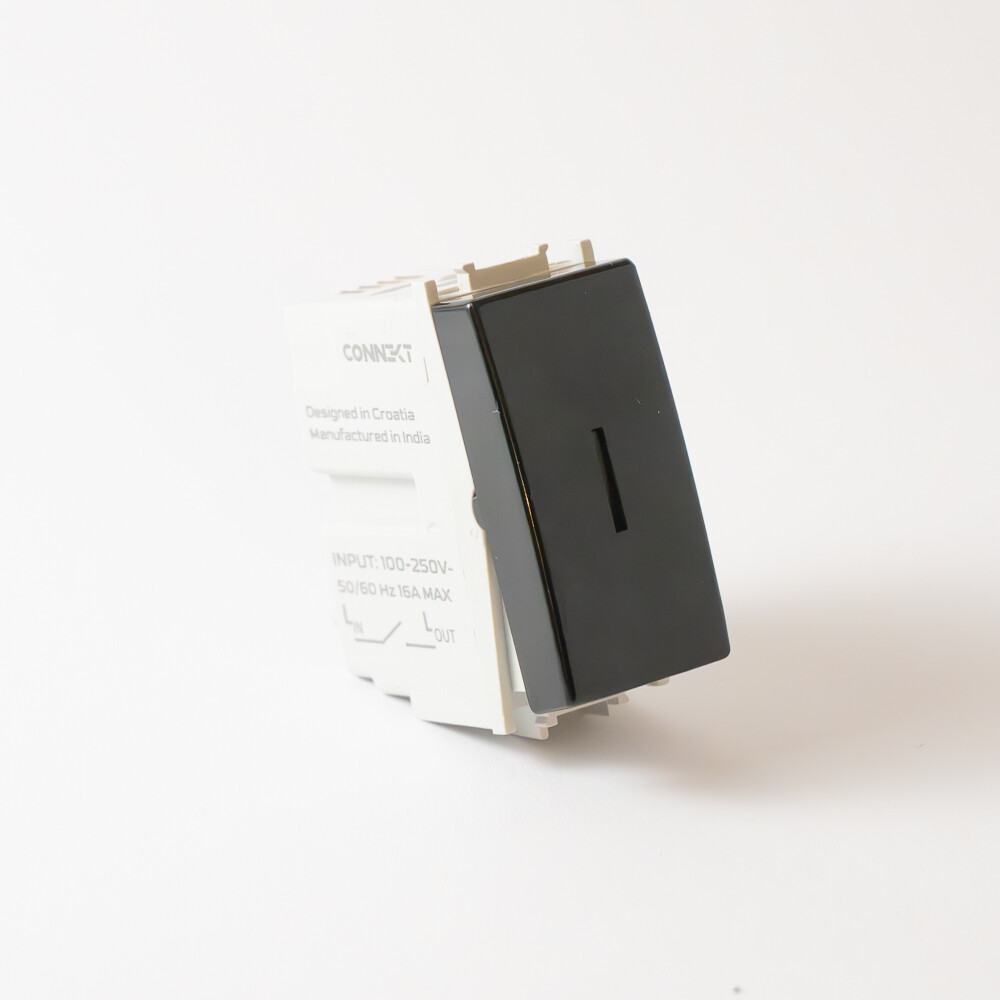

The Connekt World 1M Smart Physical Switch is a spring-return, single-press switch module designed for precise and intuitive control of electrical loads. Featuring a single internal relay and configurable logic modes, it combines traditional physical interaction with modern smart behavior.

The switch face can only be pressed downward and automatically returns to its resting position. Behind a semi-transparent square window at the center of the switch, an integrated RGB LED provides clear visual indication of the current output state.

Users can choose between Toggle and Hold operation modes, adjust timing behavior through the Connekt app, and optionally invert the output logic to match specific use cases such as pulse control, delayed shutoff, or normally-on circuits.

Operating Modes

• Toggle Mode: each press toggles the relay state between ON and OFF.
• Hold Mode: pressing the switch activates the relay; after release, the relay remains ON for a user-defined hold time (in seconds) before returning to OFF.
• Momentary Hold (0s): when hold time is set to 0 seconds, the relay is active only while the switch is physically held down.
• Output Inversion: optional logic inversion allows the relay to remain ON by default and switch OFF during press or hold duration.

RGB Status Indicator

The integrated RGB LED is positioned behind a semi-transparent square window on the switch surface and provides immediate visual feedback of the relay state.

• Configurable ON and OFF colors via app
• Default colors: green for ON, red for OFF
• Improves visibility and state recognition at a glance

Timer Control via Smart Cover

When installed under a compatible smart cover, the touch button above the switch can act as a toggle timer. The timer duration is adjustable in the app.

• After the countdown completes, the relay state is toggled automatically
• In Hold mode, the relay activates for the configured hold time
• If hold time is set to 0 seconds, the timer activates the relay for 0.5 seconds

This feature is ideal for delayed actions, such as turning lights off after a set period when going to bed.

Installation Notes

• Designed for installation into a Connekt Smart Frame
• Single-pole switching with one internal relay
• Requires compatible cover for touch timer functionality
• All behavior configurable through the Connekt app
