Connekt World 1M Smart Physical Switch LB

SingleTouch · Single-Pole · RGB

Overview

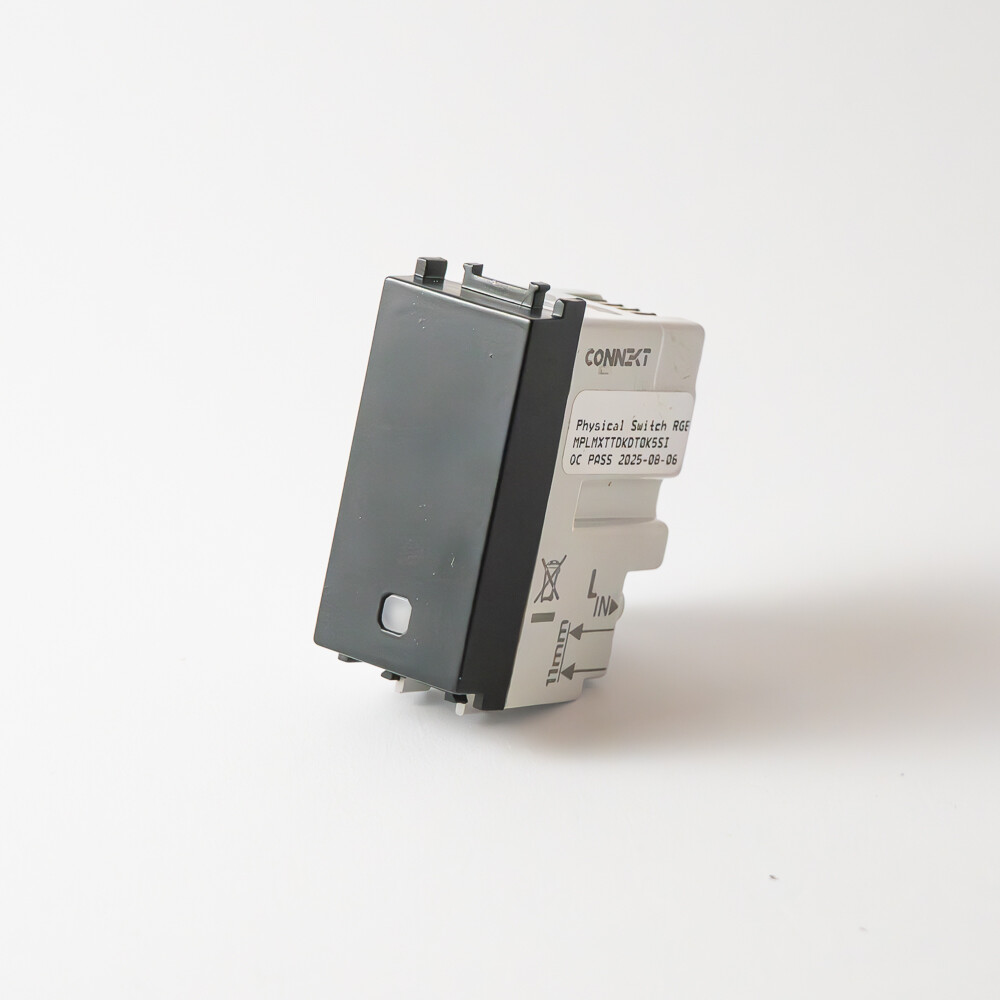

The Connekt World 1M Smart Physical Switch LB is a premium touch-operated smart switch developed in collaboration with Lana Banely, renowned interior designer and founder of Lana Banely Design. As part of the Lana Banely CONNEKT luxury line, this switch combines refined aesthetics with the full functionality of Connekt’s proven smart switching system.

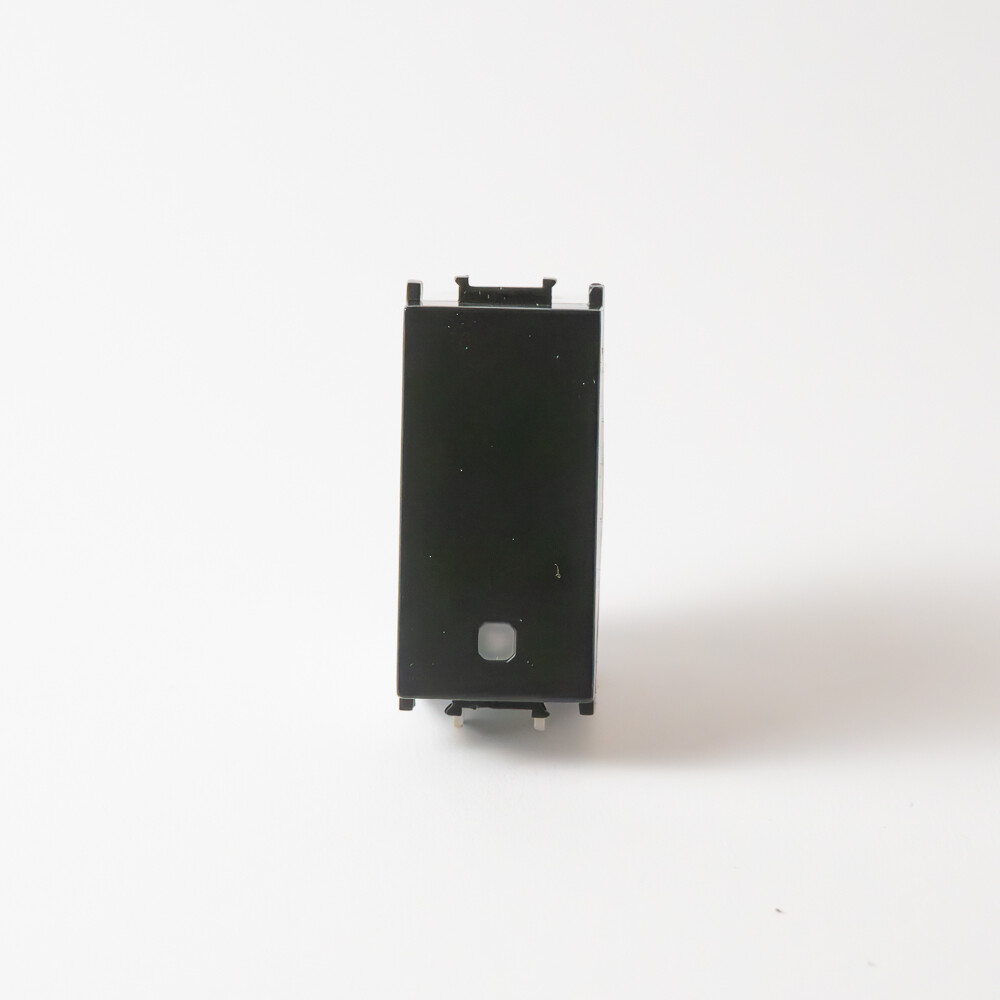

Instead of a mechanical button, the switch uses a capacitive touch sensor hidden behind a flat, flush front surface. The result is a seamless appearance that integrates naturally into high-end interiors while maintaining intuitive interaction.

Functionally, the switch behaves identically to the standard Connekt Physical SinglePress switch, offering the same logic modes, timing options, and app-based configuration.

Touch Interaction

A single touch on the surface triggers the switch action. The surface is fully flush with the cover, with no moving parts, ensuring silent operation and a clean, minimalist look.

• Capacitive touch sensing (no mechanical button)
• Flat, flush surface aligned with the cover
• Momentary input for full consistency with app control

Operating Modes

• Toggle Mode: each touch toggles the relay state between ON and OFF.
• Hold Mode: touching activates the relay; after release, the relay remains ON for a user-defined hold time before returning to OFF.
• Momentary Hold (0s): relay is active only while the surface is being touched.
• Output Inversion: optional inversion allows the relay to remain ON by default and switch OFF during touch or hold duration.

Octagonal RGB Status Indicator

The switch features an octagonal RGB indicator positioned beneath the front surface. This distinctive shape is a signature design element of the Lana Banely CONNEKT line and provides elegant, subtle visual feedback.

• Integrated RGB LED with octagonal diffuser
• User-configurable ON and OFF colors via app
• Default colors: green for ON, red for OFF

Timer Control via Smart Cover

When installed with a compatible smart cover, the touch button above the switch functions as a toggle timer.

• Timer duration configurable via app
• After countdown, relay state is toggled automatically
• In Hold mode, activates for the configured hold time
• With 0s hold time, timer activates the relay for 0.5 seconds

Installation Notes

• Designed for installation into Connekt Smart Frames
• Single-pole switching with one internal relay
• No moving parts on the front surface
• All behavior configurable through the Connekt app

Short Description (SEO)

Connekt World 1M Smart Physical Switch LB — luxury single-touch smart switch with capacitive surface and octagonal RGB indicator. Developed with Lana Banely Design. Toggle and hold modes, adjustable timing, and smart cover timer support.
